Inner-group

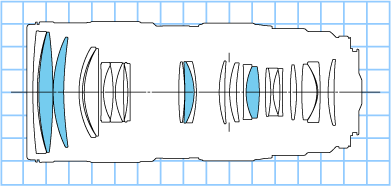

| Min. focal length : 70mm, f/2.8 ~ f/32 | Show MTF chart, Lens diagram, or Lens image. |
||
| Max. focal length: 200mm, f/2.8 ~ f/32 | |||
| Focusing | External | Internal | |
| Min. focus dist: 1400mm | Weight: 1470 | Zoom type: rotary | |
| Focus drive: Ring-USM | Diameter: 86.2mm | Elements: 23 | |
| Focus type: Inner-group |
Length: 197mm | Groups:18 | |
| Manual focus? No | Ft filter dia: 77mm | Aperture blades: 8 | |
| FTManual focus? Yes | |||
| Marketing | Features | Back end | |||||
| Price: $ (USD) | 1624 | APS-C-only | No | IS stops: | 3 | Rear filter | No |
| Professional grade, white | True Macro | No | Magn. IS ratio: | Rear filter dia | 0 | ||
| Max magn.: | 0.17 | T/S | No | Rear gel filter? | No | ||
| Date marketed | 2009-01-01 | Diff. Optics | No | Sigma TC OK? | No | ||
| Kit-only? | No | Catadioptric | No | Hood type | Petal | Sigma TC1 OK? | No |
| Discontinued? | No | Digital coating | Yes | Hood included | Yes | Sigma TC2 OK? | No |
| Metric designations | Yes | Hood model | ET-86 | Canon TC OK? | Yes | ||
